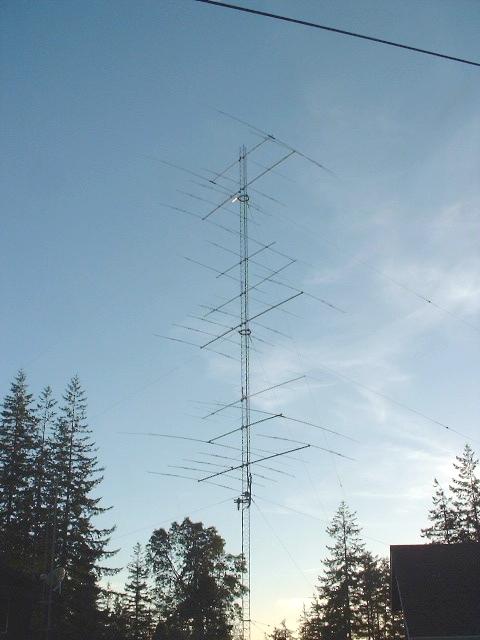

Tower #1 is a 130 foot 45G tower and
hilds the primary
-
antennas. This tower has a
K0XG pivot bearing at
-
the 50' level which allows the upper 80'
of the tower
-
to be fully rotated. Guy rings are also
by K0XG. Guying
-
is done with Polygon fiberglass rod out
to 50 feet horizontal
-
from the tower and EHS steel the
remaining distance to the
-
anchors.
- Antennas from top to
bottom are:
