K7MI Tower #2

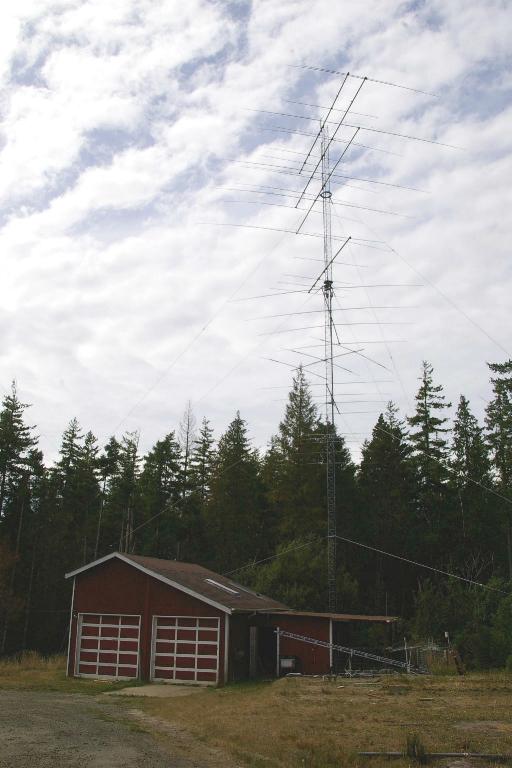

Tower #2 is a 120 foot 45G tower and holds the antennas

 for the second station. This tower also holds antennas

for 20-15-10 fixed on Asia as well as a small

 tribander fixed on VK/ZL.  This tower has a K0XG pivot

bearing at the 80' level which allows the upper 40' of

the tower to be fully rotated. Guy rings are also by K0XG.

All guying except the top level is done with Polygon fiberglass rod

 out to 50 feet horizontal from the tower and EHS steel the remaining distance

to the anchors. The top guys are entirely 5/16 EHS steel.

Antennas from top to bottom:

6 ele on 15M

5 ele on 20M

4 ele on 40M

5 ele on 10M

4 ele on 20M fixed on Asia

Tribander fixed on VK/ZL

4 ele on 15M fixed on Asia

5 ele on 10M fixed on Asia
